Environment Test Chamber Vibration , Test Chamber For Automotive Components Tests

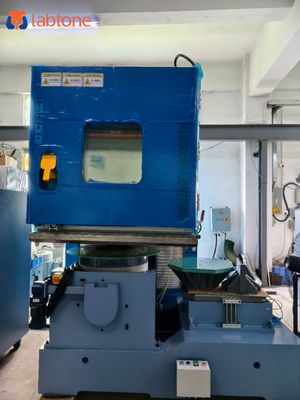

Imagem Grande : Environment Test Chamber Vibration , Test Chamber For Automotive Components Tests

Detalhes do produto:

Lugar de origem:	China
Marca:	LABTONE
Certificação:	ISO,CE
Número do modelo:	HVT1000

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 conjunto
Preço:	negociável
Detalhes da embalagem:	Caixa de madeira internacional
Tempo de entrega:	30 dias
Termos de pagamento:	T/T
Habilidade da fonte:	15 conjuntos / mês

Contato

Environment Test Chamber Vibration , Test Chamber For Automotive Components Tests

descrição

ambiental principal:	Vibração,Temperatura,Humidade	Froce de excitação da vibração:	300kgf~5000kgf
Dimensão da câmara (interior):	500750600, 600850800, 10001000800, 100010001000 mm	Escala de Temprature:	-70~+150°C (máximo)
Faixa de umidade:	20~98%R.H.	Tipo do teste de vibração:	Sinus, aleatório, choque clássico, etc.
Destacar:	vibration test chamber for automotive , environmental test chamber with warranty , automotive component test chamber

Environment Test Chamber Vibration, Test Chamber For Automotive Components Tests

Description

We are always focused on the latest development of reliable testing technologies, and also value the importance of upgrading the technologies of the equipment. Requirement for “Environment Simulation” also helps the clients to realize the importance of vibration platform and test chambers provided by supplier. We can provide broad range of combined environment testing systems according to the clients’ requirements. For example: 3 to 4 integrated testing setup scheme (air-cooled vibration test system complimented by low pressure test chamber), multi-axis vibration test and latest testing technologies.

Features

Independent control system: can complete high temperature, low temperature, constant temperature, constant humidity, vibration test and integrated test.
Adopts portable track design to perform integrated or single element test easily.
Our vibration test systems are compatible with international test chambers of different brands. Labtone is in charge of assembly and provide the clients with integrated environment test system of different specifications and performance.

Main Parameters:

Main Environment	Temperature, Humidity, Vibration
Vibration Exciting Force	300kg.f～5000kg.f
Chamber Inner Size	500x750x600 600x850x800 1000x1000x800 1000x1000x1000
Temperature Range	-70 ～＋150℃(Max.)
Humidity Range	20～98%R.H(Max.)
Type of Vibration Test	Sine, Random, Classical Shock, Resonant search and dwell, sine plus random, random and random, etc.

Any special requirement please feel free to contact us and we will try to realize it.

Connection mode:

Vibration test systems and test chamber connect directly

Vibration test systems and test chamber connect through transition connector

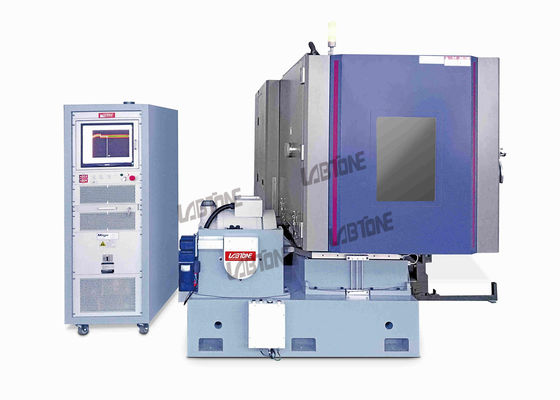

Environment Test Chamber Vibration , Test Chamber For Automotive Components Tests 2
Vibration test systems and test chamber connect through the table

Packaging & Shipping

Environment Test Chamber Vibration , Test Chamber For Automotive Components Tests 4

Customer Services

Presales:

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales:

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales:

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

Technical support: special paid services are provided according to customer’s needs.

Company Profile:

Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.

We sincerely invite you to visit our factory.
